Triumph Spitfire



The Triumph Spitfire was a small British two-seat sports car, introduced in 1962. The vehicle was based on a design produced for Standard-Triumph in 1957 by Italian designer Giovanni Michelotti. The codename for the vehicle was the "Bomb". The car was largely based on the Triumph Herald saloon, and throughout its life was built at the Standard-Triumph works at Canley, Coventry.

Models

Five separate Spitfire models were sold during the production run:

Model name Engine Year Number built

Triumph Spitfire 4 (Mark I) 1147 cc inline 4 1962–1965 45,763

Triumph Spitfire Mark II 1147 cc inline 4 1965–1967 37,409

Triumph Spitfire Mark III 1296 cc inline 4 1967–1970 65,320

Triumph Spitfire Mark IV 1296 cc inline 4 1970–1974 70,021

Triumph Spitfire 1500 1493 cc inline 4 1974–1980 95,829

Origins

The Triumph Spitfire was originally devised by Standard-Triumph to compete in the small sports car market which had opened up with the introduction of the Austin-Healey Sprite. The Sprite had used the basic drive train of the Austin A30/35 in a light body to make up a budget sports car; Triumph's idea was to use the mechanics from their small saloon, the Triumph Herald, to underpin the new project. Triumph had one advantage, however; where the Austin A30 range was of unitary construction, the Herald featured a separate chassis; it was Triumph's intention therefore to cut that chassis down and clothe it in a sports body, saving the costs of developing a completely new chassis / body unit.

The Italian designer Michelotti—who had already penned the Herald—was commissioned for the new project, and came up with a traditional, swooping body. Wind-up windows were provided (in contrast to the Sprite/Midget, which still featured sidescreens at that time), as well as a single-piece front end which tilted forwards to offer unrivalled access to the mechanics. At the dawn of the 1960s, however, Standard-Triumph was in deep financial trouble, and unable to put the new car into production; it was not until the company was taken over by the Leyland organization that funds became available and the car was launched. Leyland officials, taking stock of their new acquisition, found Michelotti's prototype hiding under a dust sheet in a corner of the factory and rapidly approved it for production.

Spitfire 4 or Mark I



Triumph Spitfire 4

Production 1962-1964

45,753 made

Engine(s)

1147 cc Straight-4

The production car changed little from the prototype, although the full-width rear bumper was dropped in favour of two part-bumpers curving round each corner, with overriders. Mechanics were basically stock Herald components: The engine was a 4-cylinder of 1147 cc, mildly tuned for the Spitfire with twin SU carburettors. Also from the Herald came the rack and pinion steering and coil-and-wishbone front suspension up front, and at the rear a single transverse-leaf swing axle arrangement. This ended up being the most controversial part of the car: it was known to "tuck in" and cause violent over steer if pushed too hard, even in the staid Herald. In the sportier Spitfire (and later the 6-cylinder Triumph GT6 and Triumph Vitesse) it led to severe criticism. The body was bolted to a much-modified Herald chassis, the outer rails and the rear outriggers having been removed; little of the original Herald chassis design was left, and the Spitfire used structural outer sills to stiffen its body tub.

The Spitfire was an inexpensive small sports car and as such had very basic trim, including rubber mats and a large plastic steering wheel. These early cars were referred to both as "Triumph Spitfire Mark I" and "Spitfire 4", not to be confused with the later Spitfire Mark IV.

From 1964 an overdrive option was added to the four speed gearbox to give more relaxed cruising. Wire wheels and a hard top were also made available.

Spitfire Mark II

Production 1965-1967

37,409 made

Engine(s)

1147 cc Straight-4

In March 1965 the Spitfire Mark II was released and was very similar to the Mark I but featured a more highly tuned engine, through a revised camshaft design, a water cooled intake manifold and tubular exhaust manifold, increasing the power to 67 bhp (50 kW) at 6000 rpm. This improved the top speed to 92 mph (148 km/h). The coil-spring design clutch of the Mark I was replaced with a Borg and Beck diaphragm spring clutch. The exterior trim was modified with a new grille and badges. The interior trim was improved with redesigned seats and by covering most of the exposed surfaces with rubber cloth. The original moulded rubber floor coverings were replaced with moulded carpets.

It was introduced at a base price of £550 while the Sprite was priced at £505 and the Midget at £515. Top speed was claimed to be 96 mph (154 km/h) and its 0-60 mph time of 15.5 seconds was considered "lively." The factory claimed that at highway speeds (70 mph (110 km/h)) this lively car achieved 38.1 miles per imperial gallon (7.41 L/100 km; 31.7 mpg-US).

Spitfire Mark III

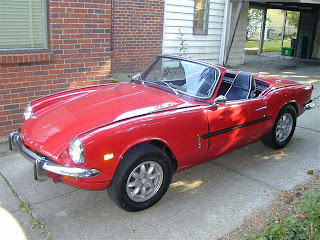

Triumph Spitfire Mark III

Production 1967-1970

65,320 made

Engine(s)

1296 cc Straight-4

The Mark III, introduced in March 1967, was the first major facelift to the Spitfire. The front bumper was raised in response to new crash regulations, and although much of the bonnet pressing was carried over, the front end looked quite different. The rear lost the overriders from the bumper but gained reversing lights as standard (initially as two separate lights on either side of the number plate, latterly as a single light in a new unit above the number plate); the interior was improved again with a wood-veneer instrument surround. A folding hood replaced the earlier "build it yourself" arrangement. For most of the Mark III range, the instrument cluster was still centre-mounted (as in the Mark I and Mark II) so as to reduce parts bin counts (and thereby production costs) for right-hand and left-hand drive versions. Starting in 1969, however, US-bound models were produced with a "federal" dashboard design which moved the gauges in front of the driver, a layout that would be adopted for all markets with the Mark IV. The 1147 cc engine was replaced with a bored-out 1296 cc unit, as fitted on the new Triumph Herald 13/60 and Triumph 1300 saloons. In twin-carburettor form, the engine put out a claimed 75 bhp (56 kW) and made the Mark III a comparatively quick car by the standards of the day. Popular options continued to include wire wheels, a hard top and a Laycock de Normanville overdrive, and far more relaxed and economical cruising at high speeds. The Mark III was the fastest Spitfire yet, achieving 60 mph (97 km/h) in 12.5 seconds. The Mark III actually continued production into 1971, well after the Mark IV was introduced.

Spitfire Mark IV



Triumph Spitfire Mark IV

Production 1970-1974

70,021 made

Engine(s)

1296 cc Straight-4

The Mark IV brought the most comprehensive changes to the Spitfire. It featured a completely re-designed cut-off rear end, giving a strong family resemblance to the Triumph Stag and Triumph 2000 models, both of which were also Michelotti-designed. The front end was also cleaned up, with a new bonnet pressing losing the weld lines on top of the wings from the older models, and the doors were given recessed handles and squared-off glass in the top rear corner. The interior was much improved: a proper full-width dashboard was provided, putting the instruments ahead of the driver rather than over the centre console. The engine continued at 1296 cc, but was modified with larger big-end bearings to rationalize production with the TR6 2.5 litre engines, which somewhat decreased its "revvy" nature; there was some detuning, to meet new emissions laws, which resulted in the new car being a little tamer than the Mark III. The gearbox gained synchromesh on its bottom gear.

An all-new hardtop was also available, with rear quarter-arlights and a flatter rear screen.

By far the most significant change, however, was to the rear suspension, which was de-cambered and redesigned to eliminate the unfortunate tendencies of the original swing-axle design. The Triumph GT6 and Triumph Vitesse had already been modified, and the result on all these cars was safe and progressive handling even at the limit.

The Mark IV went on sale in the UK at the end of 1970 with a base price of £735.

Spitfire 1500



Triumph Spitfire 1500

Production 1974-1981

95,829 made

Engine(s)

1493 cc Straight-4

In 1973 in the United States & Canada and 1975 in the rest of the world, the 1500 engine was used to make the Spitfire 1500; though in this final incarnation the engine was rather rougher and more prone to failure than the earlier units, torque was greatly increased which made it much more drivable in traffic. The reason for the engine problems was due to continued use of three main bearings for the crank shaft.

The US market models were considerably less powerful than the British market cars because they had to meet more stringent US emissions requirements. While the rest of the world saw 1500s with the compression ratio reduced to 8.0:1, the American market model was fitted with a single Zenith-Stromberg carburettor and a compression ratio reduced to 7.5:1 to allow it to run on lower octane unleaded fuel and after adding a catalytic converter and exhaust gas recirculating system, the engine only delivered 53 bhp (40 kW) with a 0-60 time of 14.3 seconds.

The notable exception to this was the 1976 model year, where the compression was raised to 9:1.

US market cars also suffered from poorer handling due to the longer front springs that Triumph fitted to bring the headlights up to the height required by US law. American market Spitfire 1500s are easily identified by their big plastic over-riders, and wing mounted reflectors on the front and back wings. The US specification model years of 1978 and previous still have chrome bumpers, however the 1979 and 1980 models were fitted with black rubber bumpers with built-in over-riders, and chassis extensions were fitted under the boot to support the bumpers.

Detail improvements continued to be made throughout the life of the Mark IV, and included reclining seats with head restraints, wood dash, hazard flashers and electric washers (previously these had been operated by a manual pump on the dashboard). Options such as the hard top, tonneau cover, map light and overdrive continued to be popular, though wire wheels ceased to be available.

The 1980 model was the last and the heaviest of the entire run weighing in at 1,875 lb (850.5 kg). Base prices for the 1980 model year were $5,995 in the US and £3631 in the UK. The last Spitfire, an Inca Yellow UK-market model with hardtop and overdrive, rolled off the assembly line at Canley in August 1980, shortly before the factory closed.

Die-Cast models

Dinky Toys produced a model of the Spitfire 4 in the 1960s.
Lledo Vanguards produced models of both the Spitfire 4 and the Mark 3 in the 2000s.
Vitesse produced a model of the Mark IV in the 2000s.
